matrix rigging harness quick connect

£194.97 +VAT

Fast connect rope access and rigging harness with ergonomically designed shoulder, waist and leg pads for greater user comfort.

Multi-functional harness developed for rope access and rigging but suitable for all work at height.

Usually despatched within 1-2 days

If you wish to order in bulk please contact us as we can offer special discounts for larger quantities

Clear
SKU: H21* Category: Brand:

Description

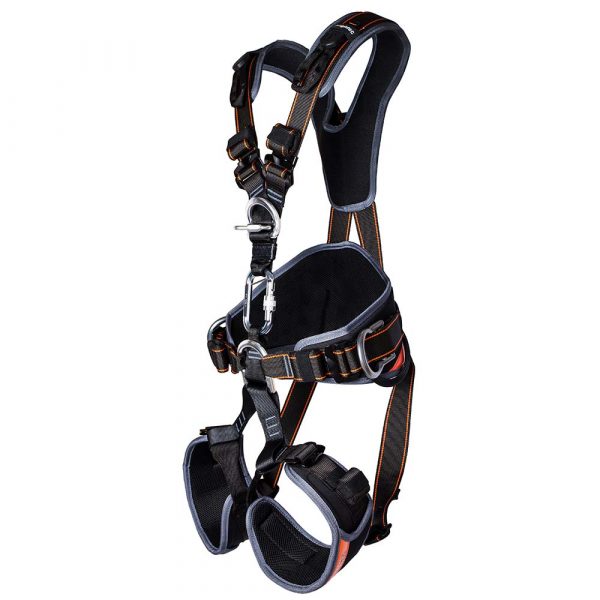

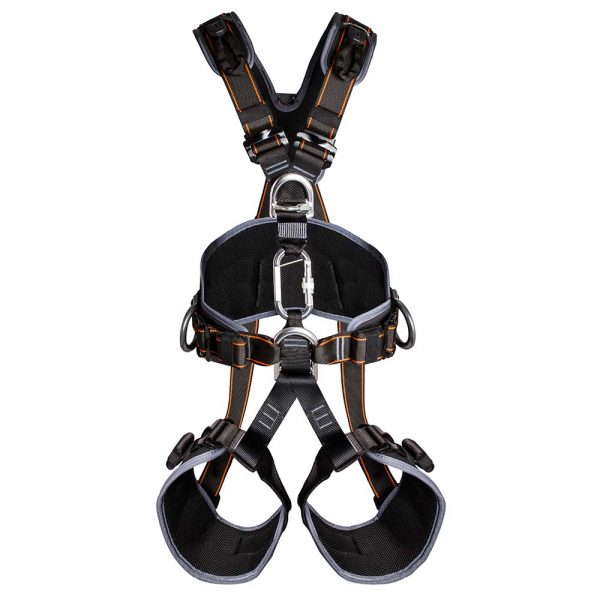

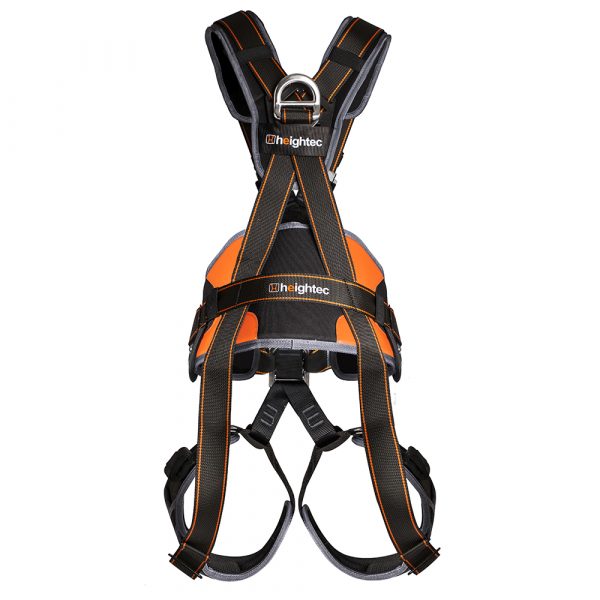

The MATRIX harness can be used for rigging, it has ergonomically designed shoulder, waist and leg pads for greater comfort.

Waist section is articulated for maximum freedom of movement and comfort when not suspended. When the user is suspended from the waist D-ring the leg loops lift into a sitting position. When not suspended, the waist attachment moves downwards allowing the user to stand up straight. Alloy karabiner connects to a loop behind waist D-ring. Hook free gate prevents snagging and reduces potential webbing damage.

Ergonomically contoured pads are shaped and formed for comfort. 3 dimensional forming and plastic inserts provide support where it is needed but allow movement in essential areas.

SafeLock™ quick connect leg, waist and chest buckles make fitting fast and easy, allowing the harness to be removed without the need for readjustment.

Integral delta screwlink simplifies attachment and use of chest ascenders. Screwlink can be removed if not required.

Side D-rings allow work positioning attachments and fold away discreetly when not required.

Lightweight, durable gear loops with 20 kg rated load and 7:1 factor of safety. Accessories and tool bags can also be attached directly around the waist belt webbing.

Complies with Siemens PPE requirements PRO-13838 Ap1.

Sizes available:

  • H21Q MATRIX quick connect – Torso 95 – 120 cm. Thigh 60 – 80 cm. Waist 70 – 140 cm
  • H21QL MATRIX quick connect large – Torso 100 – 135 cm. Thigh 60 -100 cm. Waist 80 – 165 cm
  • H21 MATRIX standard – Torso 95 – 120 cm. Thigh 60 – 80 cm. Waist 70 – 140 cm
  • H21L MATRIX large – Torso 100 – 135 cm. Thigh 60 -100 cm. Waist 80 – 165 cm

Also available:

MATRIX – Rigging Harness fixed leg buckles – standard (H21), large (H21L).

Commodity Code: 6307909899

Country of Origin: UK

Features

  • Adjustable and releasable padded shoulder straps
  • Large front ring
  • Integral delta screwlink for chest ascender
  • Articulated waist section for freedom of movement
  • Shoulder, waist and leg pads
  • Integral delta screwlink for fitting a chest ascender
  • Folding side D-rings
  • Multiple tool and accessory attachments
  • Quick connect leg buckles



Specifications

Sizing: Universal
Material: Polyamide, mild steel and aluminium.
EN Mass Test: 140kg
Loading: Fall Arrest & Rescue Loads
Weight: 2.05 kg
Conformity: EN358, EN361, EN813
Downloads:

Additional information

Size

Standard, Large
